Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: NAI
  • Model Number: F09012-01
  • Type: Insulation Sleeving
  • Material: Fiberglass
  • Application: High Voltage
  • Rated Voltage: 3000V
  • Tensile Strength: 10.4Mpa
  • Color: Customized
  • Certification: SGS
  • Product name: Fiberglass Sleeving Coated with Silicone
  • Thickness: 0.12-0.20mm
  • Feature: High Temperature Resistance
  • Usage: Insulation Protection
  • Sample: Existing Sample
  • Standard: IEC ANSI GB BS
  • Length: 1m-100m
  • Standard color: Red Blue White

Packaging & Delivery

Packaging Details carton packing or bag
Delivery Time Shipped in 25 days after payment
Product Description

Fiberglass Sleeves Coated with Silicone (F09011)

These non-alkali fiberglass sleevings coated with silicone are produced with thermal treatment and vulcanization. These products are dielectric, with high temperature and low temperature resistance and excellent elasticity.
These materials can be used for wiring insulation and mechanical protection for electrical machinery
and electric appliances.
The peak voltage for sleeves of which the inner diameter is below 1.5mm should not be lower than 75% of the specified voltage.
Length: 1,000+20-10mm (longer size negotiable).


APPLICATION
Be Popular used in H-grade motors, home electrical appliances dielectric, ect.

Performance
Index
Bending after heating
The coating has no fracture that can be seen or peel off, the primary color obviously can be seen, 5℃of 260±of test temperature, 48±1 hours
Bending at the time of the low temperature
The coating has no fracture that can be seen or peel off, the primary color obviously can be seen, test temperature - 5℃of 70±, 10 hours for 60±
Spreading of flame
Heavy one second most, mark flag any time of three test should burn, burn or scorching hot particle should light the cotton.
Temperature of 20000 hours of the hot life-span index
200℃
SPECIFICATION
standard inside diameter(mm)
tolerance about inside iameter(mm)
Wall Thickness(mm)
Package
M/Roll
Package
M/Tray
0.5
+0.1
0.18
100
1000
0.8
+0.1
0.18
100
1000
1.0
+0.1
0.18
100
1000
1.5
+0.2
0.18
100
1000
2.0
+0.2
0.18
100
600
2.5
+0.2
0.18
100
500
3.0
+0.3
0.23
100
400
3.5
+0.3
0.23
100
200
4.0
+0.3
0.23
100
200
4.5
+0.3
0.28
100
200
5.0
+0.4
0.28
100
200
5.5
+0.4
0.28
100
200
6.0
+0.4
0.32
100
200
7.0
+0.6
0.32
100
100
8.0
+0.6
0.32
50
100
9.0
+0.6
0.32
50
100
10
+0.8
0.52
50
100
11
+0.8
0.52
25
100
12
+0.8
0.52
25
100
13
+0.8
0.52
25
14
+0.8
0.52
25
15
+0.8
0.52
25
16
+0.8
0.52
20
18
+0.8
0.52
20
20
+0.8
0.52
20
25
+0.8
0.52
20
30
+0.8
0.52
20

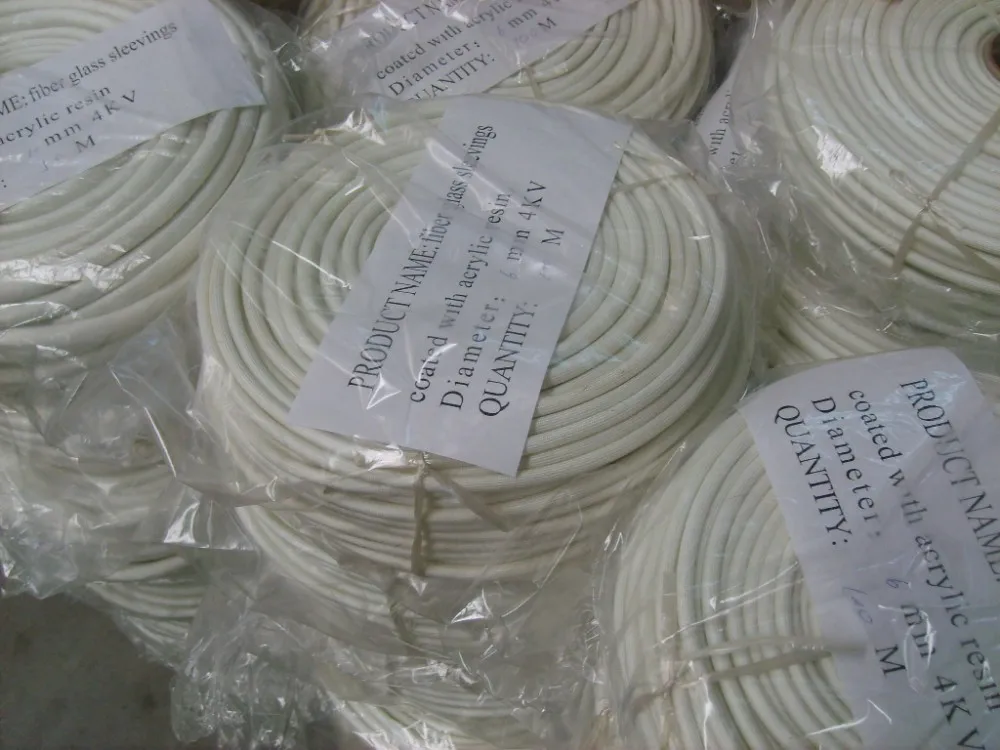

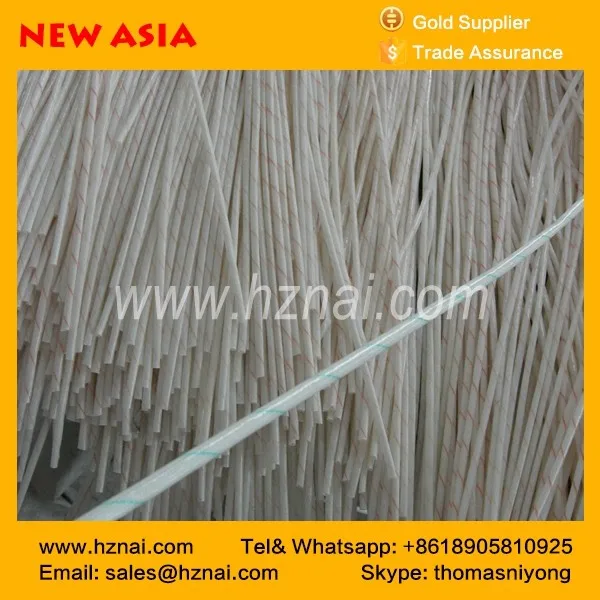

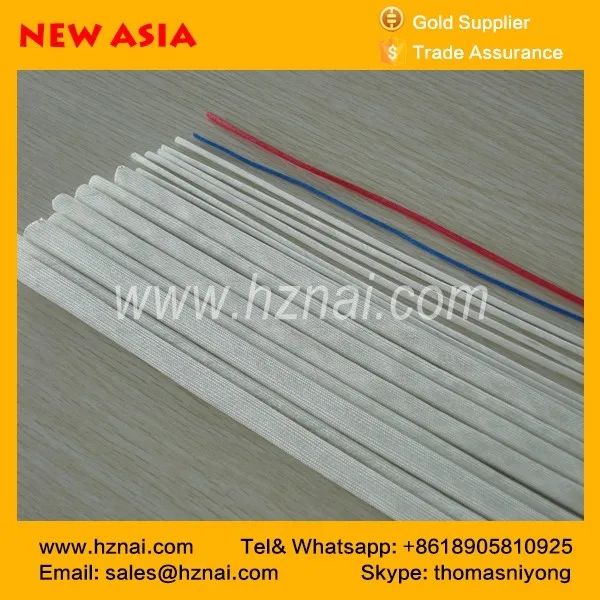

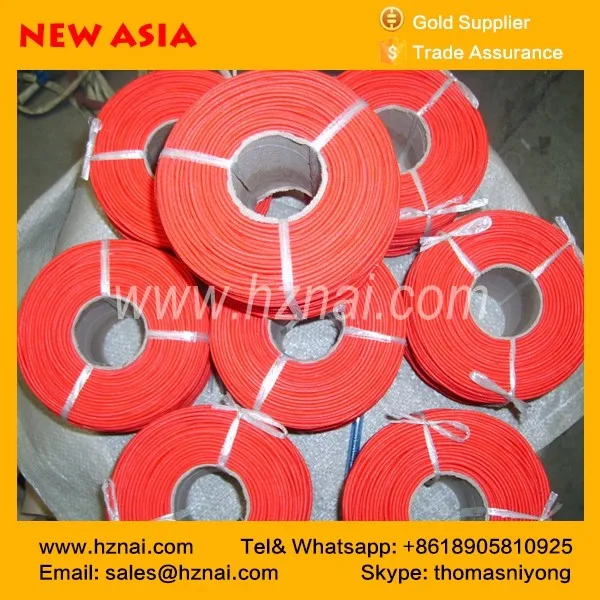

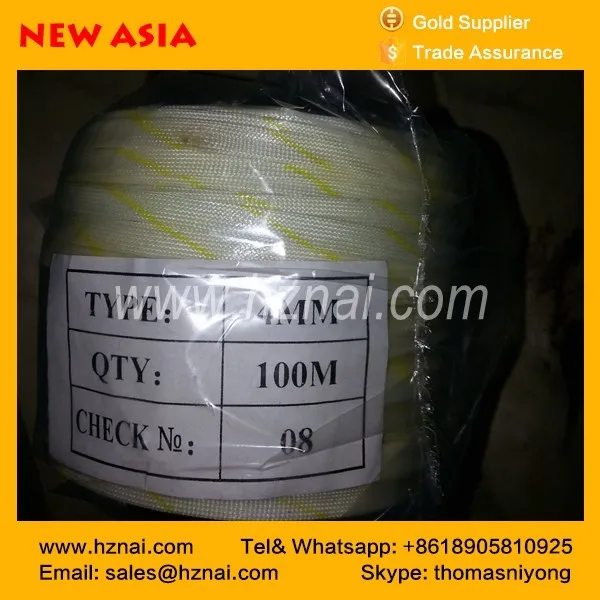

Detailed Images

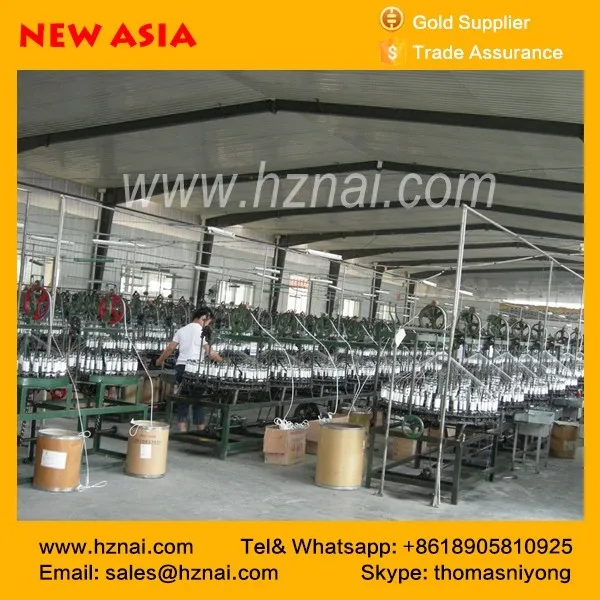

Production Progress

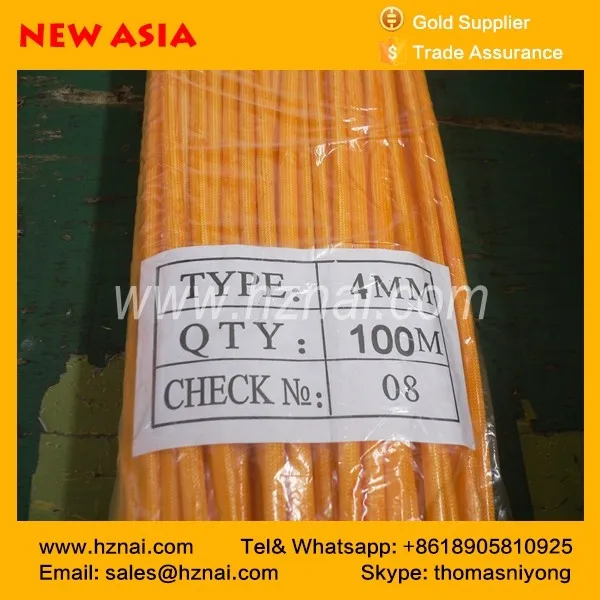

Packing & Delivery
Our Service

New Asia

1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.

FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 15 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order,we can discuss by email.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.

Our Company

New Asia's Advantage:
a.12 years experiences in export and manufacture.
b. Professional R&D center and excellent management team.
c. Reasonable Price.
d. OEM or OEM order is acceptable and warmly welcomed, as per your requests in color, logo and size .
e. Prompt Delivery .
f. We can produce according to your requirement with specification provided .

Feature:
1. Fashionable designed high qualified with factory price.
2. Good Quality :We have strict quality control system .Good reputation in the market.
3. Can produce according to customer's own style or requirements.
4. Can print logo for different markets.
